ERCOT Energy Storage 2026, $8B PUCT Reliability Shift

ERCOT BESS Deployment, $5, 000 Price Cap, 6.5 GW of Battery Projects, and 150 GW Demand Forecast (2021 to 2026)

ERCOT Grid Risk, Price Cap Failure, and Shift to Reliability Projects

ERCOT’s market design is shifting from a reliance on price signals to a mandate for physical reliability, driven by the catastrophic failure of the $9, 000/MWh price cap during Winter Storm Uri and the new challenge of unprecedented demand growth.

• In the 2021 to 2024 period, the failure was characterized by an administrative decision to hold prices at the $9, 000/MWh cap for approximately 87 hours. This proved ineffective as physical generation constraints, not economic incentives, were the limiting factor, ultimately leading the PUCT to lower the cap to $5, 000/MWh and lawmakers to pass weatherization mandates.
• From 2025 forward, the risk has evolved from acute scarcity to chronic inadequacy, with forecasts showing demand potentially doubling to 150 GW by 2030, driven by data centers. In response, regulators are implementing new interconnection rules like the “Batch Zero” study for large loads, while ERCOT manages a queue dominated by solar and battery storage.
• The adoption of new reliability mechanisms like the ERCOT Contingency Reserve Service (ECRS) in June 2023 highlights the pivot away from a pure energy-only market. These services add significant costs, estimated by the market monitor at over $8 billion in just three months.

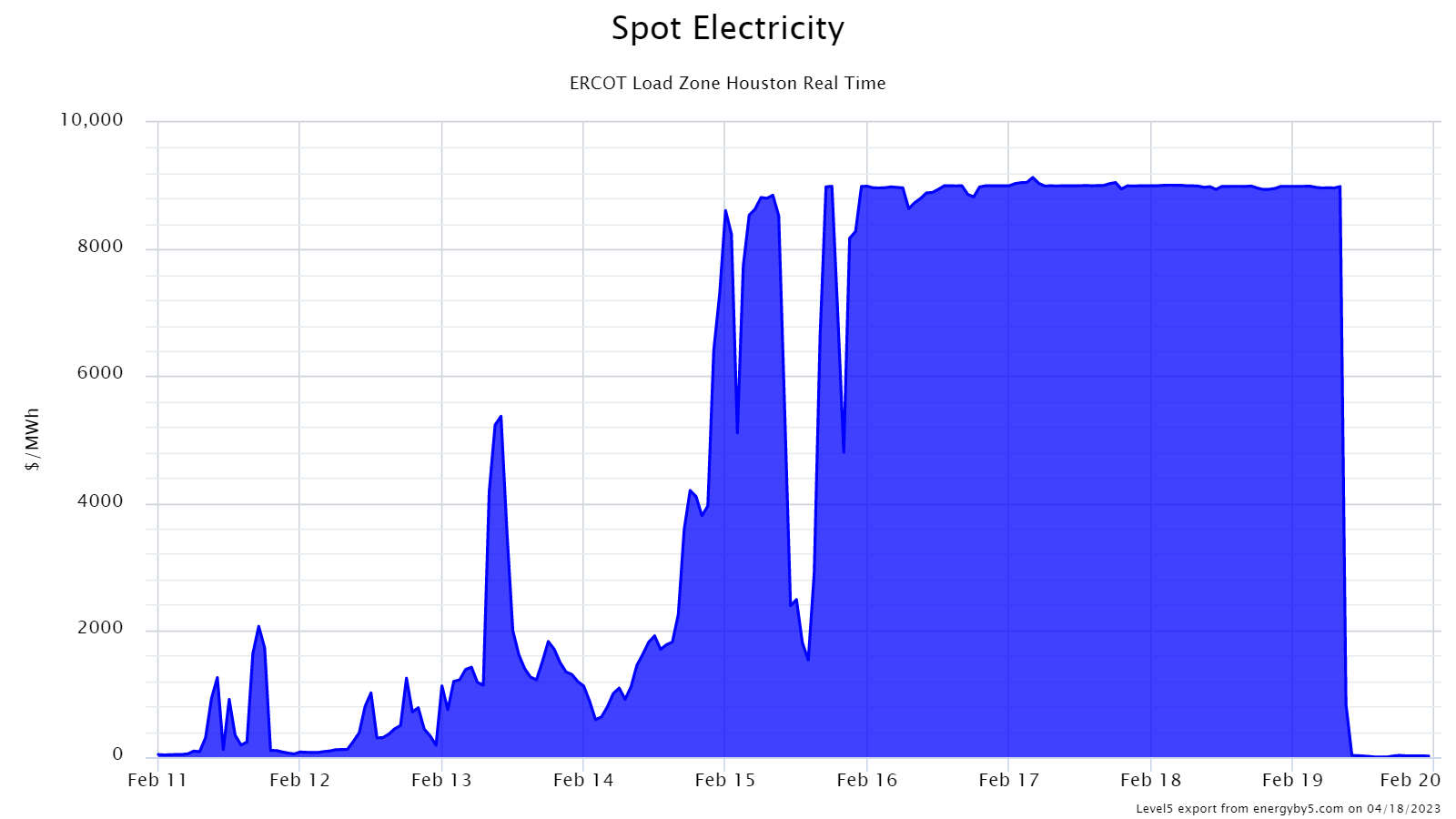

ERCOT Prices Hit $9,000/MWh Cap During Uri

This chart directly illustrates the ‘Price Cap Failure’ mentioned in the section heading. The event during Winter Storm Uri, where prices hit the maximum allowable cap, is a key example of the grid risk and market design issues the section discusses.

(Source: www.energyby5.com)

$8 Billion in New Costs, ERCOT ECRS and Other Market Interventions

The financial consequences of the 2021 grid failure and subsequent market reforms have been substantial, reallocating risk and creating new costs measured in the billions to bolster reliability.

• The decision to hold prices at $9, 000/MWh during Winter Storm Uri created a massive financial crisis, with subsequent analysis from the Independent Market Monitor indicating prices were kept at the cap longer than necessary, contributing to billions in market costs.
• To address reliability concerns, ERCOT introduced the ERCOT Contingency Reserve Service (ECRS). The Independent Market Monitor reported this new service likely increased wholesale costs by $8 billion to $10 billion in its first three months of operation in 2023.
• The crisis also imposed direct losses on generators. Wind operators alone faced an estimated $4 billion in financial damages from the storm due to a combination of lost production and high costs for replacement power.

ERCOT Electricity Costs and Reliability Adders Analyzed

The chart’s focus on ‘Electricity Costs’ and ‘Reliability Adders’ aligns perfectly with the section’s theme of ‘$8 Billion in New Costs’ and ‘Market Interventions’ like ECRS, which are a form of reliability adder.

(Source: GridBeyond)

Table: ERCOT Financial Impacts & Interventions

Texas Grid Strain, ERCOT’s Unprecedented Demand Growth from Data Centers

Texas remains the exclusive focus, but the nature of its grid stress has transitioned from a statewide weather crisis to a concentrated battle to supply power for a tsunami of new industrial demand, primarily from data centers.

• From 2021 to 2024, the primary geographic challenge was ensuring statewide grid resilience against extreme weather. This was addressed through legislation like Senate Bills 2 and 3, which mandated weatherization across the Texas energy supply chain following Winter Storm Uri’s widespread impact.
• Starting in 2025, the challenge has become highly localized and demand-driven. ERCOT‘s forecasts for explosive growth, with some projections hitting 367, 790 MW by 2032, are directly linked to the rapid proliferation of energy-intensive AI data centers and cryptocurrency mining operations concentrated in the state.
• This demand surge is creating localized transmission congestion and extreme price volatility. An event on February 19, 2025, saw a single node hit nearly $30, 000/MWh, demonstrating that system-wide stability is now threatened by regional infrastructure bottlenecks.

ERCOT Grid Load Exceeds Forecasted Levels

This chart, showing grid load surpassing forecasts, is a direct visualization of the ‘Texas Grid Strain’ and ‘Unprecedented Demand Growth’ described in the section heading.

(Source: Yes Energy)

ERCOT 10 GW Battery Storage, BESS Market Maturing Amid Volatility

ERCOT’s market design, characterized by extreme price volatility, has inadvertently created the nation’s most fertile ground for battery energy storage systems (BESS), accelerating their maturation from a niche asset to a critical component of grid reliability.

• Between 2021 and 2024, battery storage in ERCOT grew from 2, 271 MW in summer 2022 to over 6, 443 MW by summer 2024. Its primary role was providing ancillary services and capturing arbitrage opportunities during predictable daily price swings.
• From 2025 onwards, the technology’s role has become central to managing grid stability. Installed BESS capacity is projected to reach approximately 10 GW in 2025, driven by the need to manage the “duck curve” from massive solar buildouts and to capitalize on extreme price spikes.
• However, the technology’s maturity is still being tested. The extreme price event on February 19, 2025, which saw nodal prices spike above $40, 000/MWh, also revealed operational constraints where a storage facility showed “No Charge Available, ” highlighting that physical and software maturity must advance to provide consistent reliability.

ERCOT Price Spikes Correlate with Battery Discharge

The chart’s correlation of price spikes with battery discharge perfectly illustrates the functioning and market role of Battery Energy Storage Systems (BESS), which is the central topic of this section.

(Source: Yes Energy)

SWOT Analysis for ERCOT’s Market Design and Reliability

ERCOT’s market structure contains inherent strengths in promoting low-cost generation but also critical weaknesses related to reliability, creating significant opportunities for new technologies like battery storage while facing existential threats from explosive demand growth.

• Strengths: The market’s price volatility, once seen as a bug, has become a feature that provides a powerful business case for fast-ramping assets like BESS.
• Weaknesses: A “dispatchability gap” is widening as the market fails to adequately incentivize firm generation to meet soaring demand, with forecasted supply shortfalls of 6.2% by 2026.
• Opportunities: Unprecedented demand from data centers and electrification has created a massive market opportunity for new dispatchable generation and storage, evidenced by the 158, 490 MW of solar and 40, 885 MW of wind in the interconnection queue.
• Threats: The primary threat has evolved from a rare weather event to a predictable collision between soaring demand and insufficient reliable supply, with a high-demand scenario potentially driving a 79% price hike in 2027.

ERCOT Real-time Prices Show Extreme Volatility

Extreme price volatility is a critical ‘Weakness’ or ‘Threat’ in ERCOT’s market design. This chart provides a strong visual for a key point that would be covered in the section’s SWOT analysis.

(Source: MetaSD)

Table: SWOT Analysis for ERCOT Market Design

ERCOT Scenario, 150 GW Demand Growth and Future Price Cap Events

If ERCOT fails to accelerate the interconnection and construction of dispatchable generation and transmission, the grid faces a high probability of recurring scarcity events where the $5, 000/MWh price cap is frequently triggered, leading to increased regulatory intervention and potential rationing of electricity for large industrial consumers.

• Watch the outcome of ERCOT‘s “Batch Zero” study of data center interconnections in mid-2026. A restrictive outcome would signal that regulators are prioritizing grid stability over unfettered growth, which could slow the demand surge.
• Monitor the rate of new natural gas plant announcements and final investment decisions. A continued lack of investment in firm, dispatchable thermal generation despite soaring demand forecasts is a primary indicator that the energy-only market’s incentives remain broken.
• These could be happening: Lawmakers in the 2027 legislative session may be forced to consider more drastic market redesigns, such as a formal capacity market, if price volatility and reliability scares continue through 2025 and 2026.

ERCOT Price Spike Exceeds $25,000/MWh

This chart showing an extraordinary price spike serves as a precedent for the ‘Future Price Cap Events’ discussed in the section. It illustrates the potential for extreme outcomes that must be considered in future demand growth scenarios.

(Source: Yes Energy)
